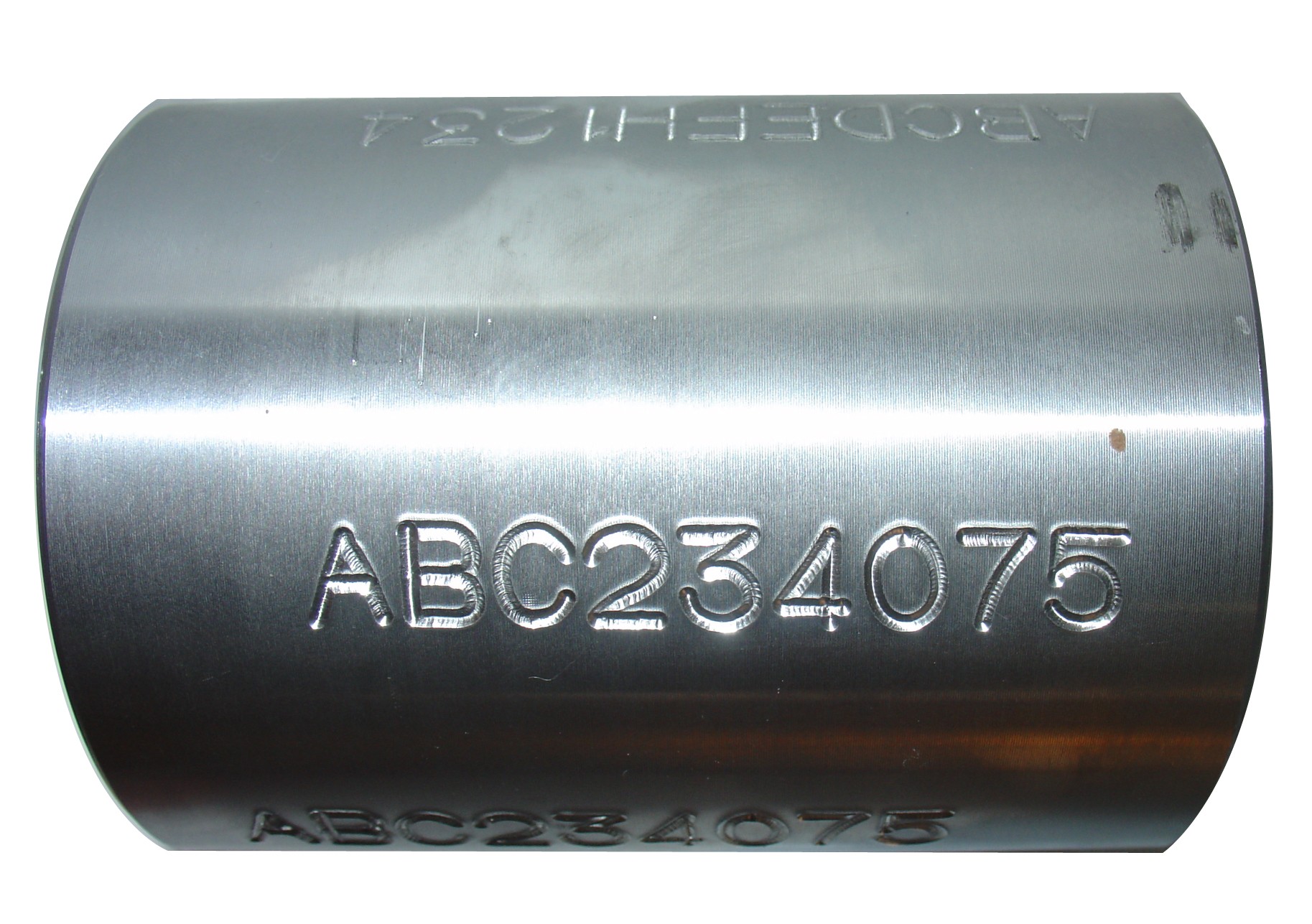

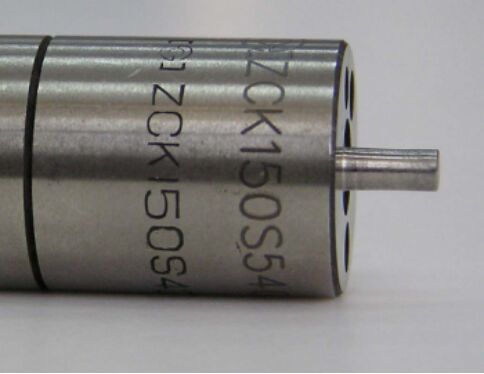

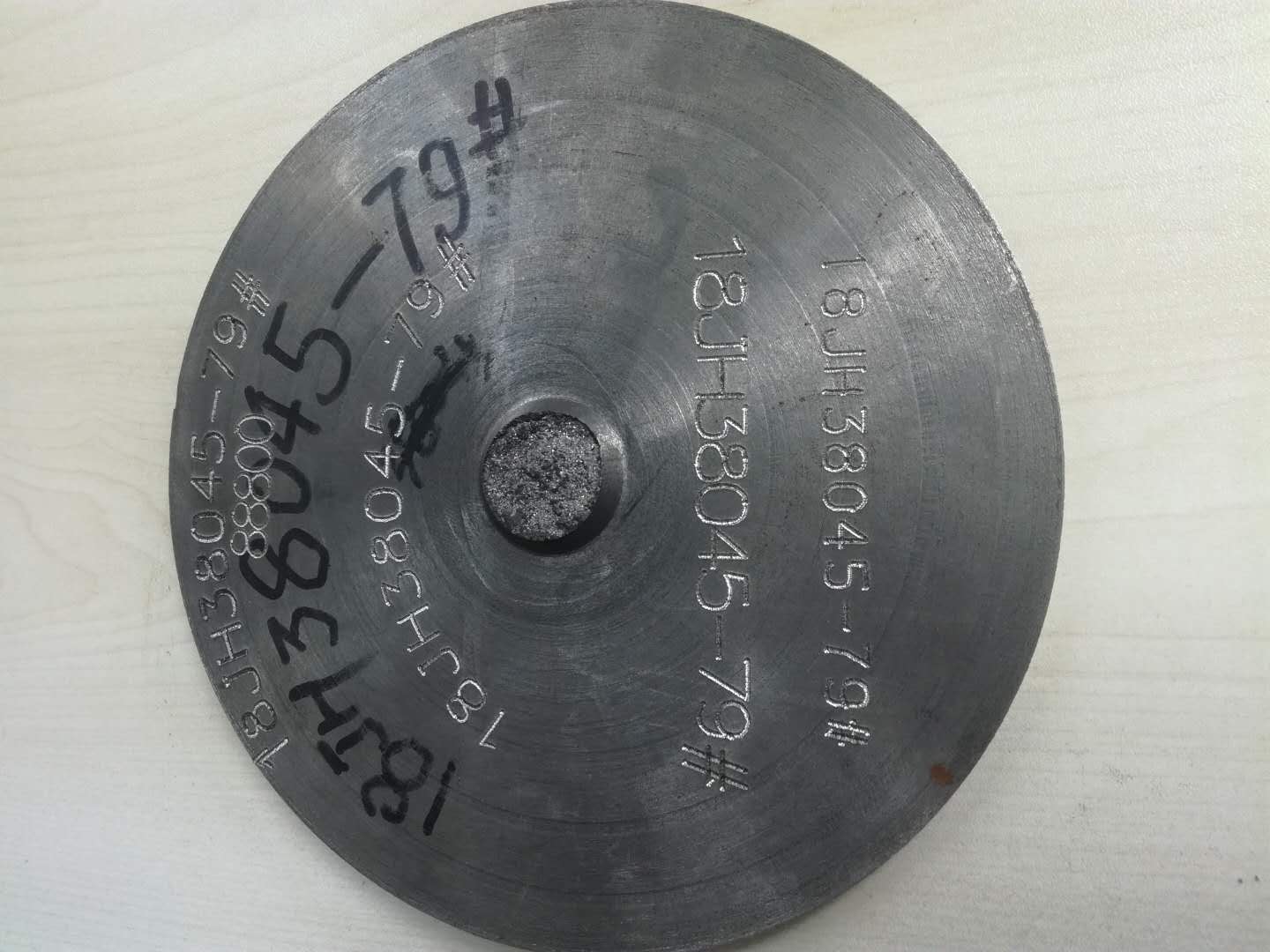

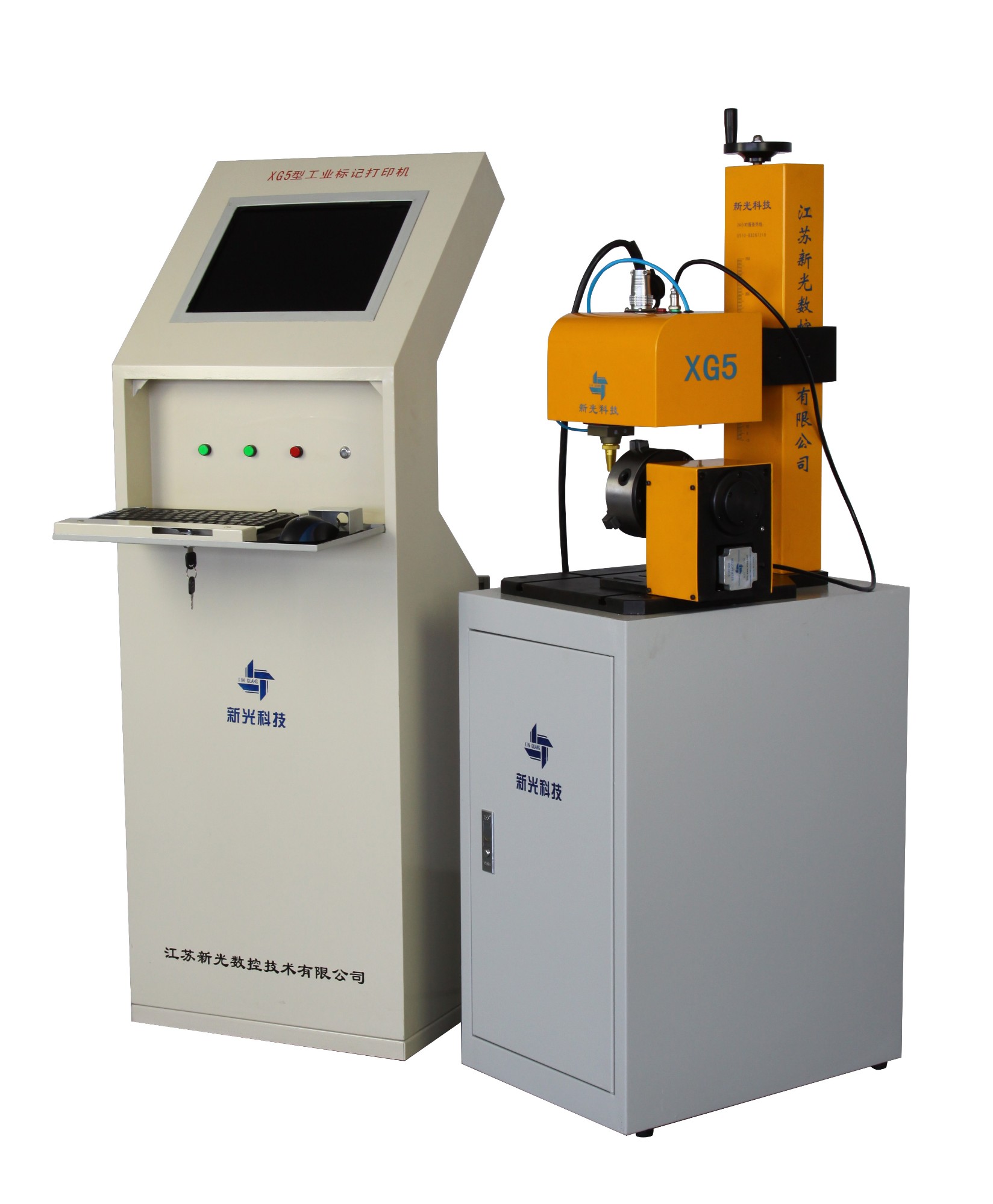

XG5-CT could marking character , digital , series no , logo etc on hard metal workpiece .

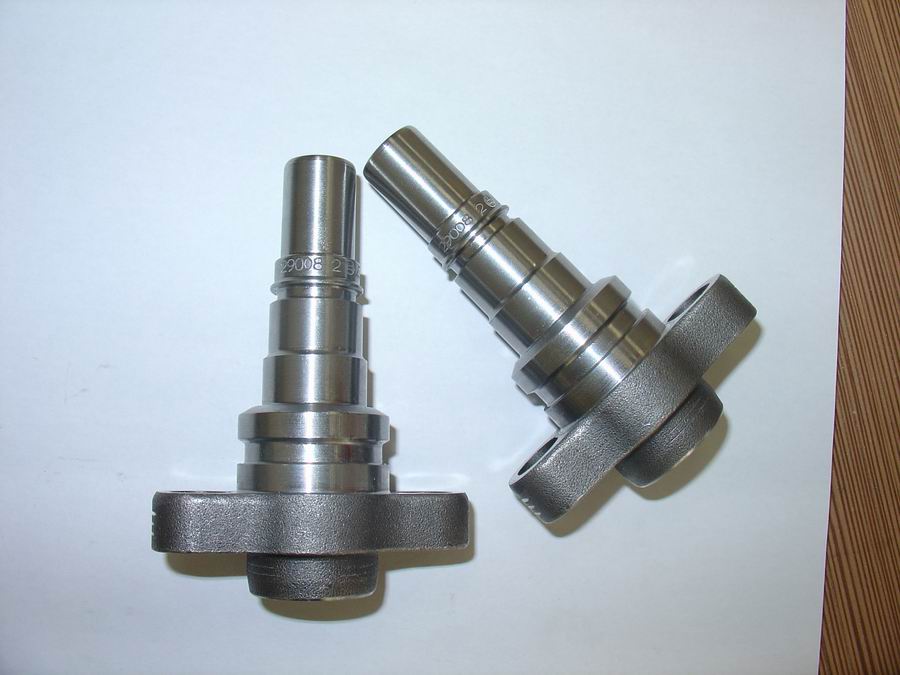

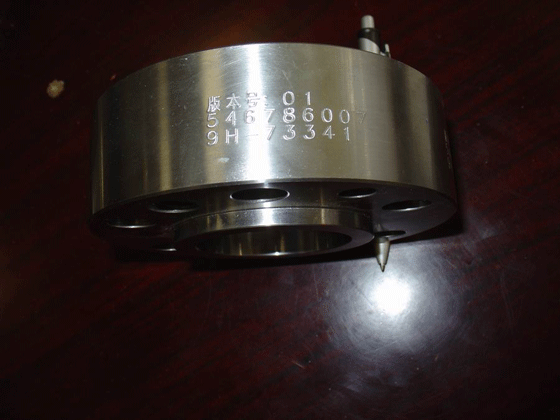

The DOT PEEN MARKER also known as Dot Marking, micropercussion and indent marking , that is carbide stylus pin dotting on the surface with high frequency than made a mark , it could mark alphanumeric (date , VIN codes , series NO ), logo or 2D barcode information on metal and plastic material --for part identification requirements. such as aerospace, automobile, mechanical, cast, electromechanical,
Software function
◆ USB Controller,pc with XP/W7 system
◆ Flat marking, 110*80mm marking area

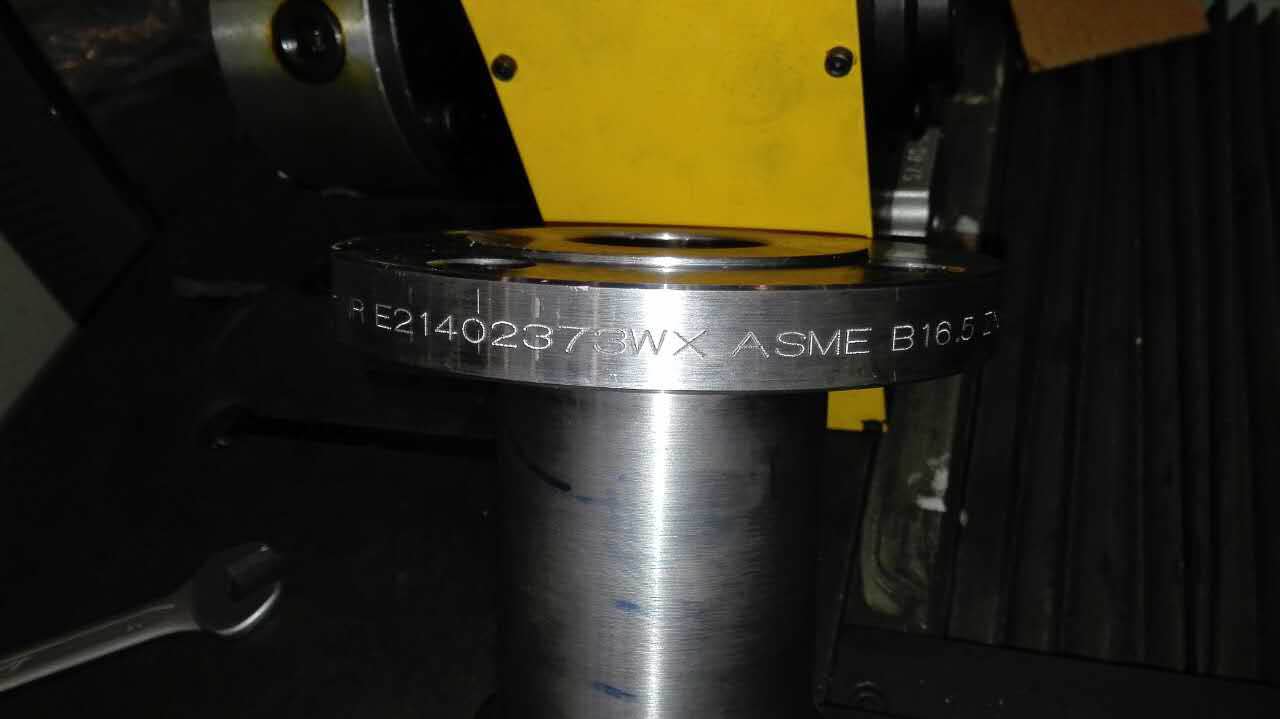

◆ Support OD10-125MM under 8kg parts rotary marking
◆ more than 100 types fonts could be choosed
◆ Text or logo size changed as will , mini 1*1mm
◆ Marking speed changed as will
◆ Support Straight line and dot marking
◆Mark straight line text, arc text , circles, boxes , ellippses ,lines and arcs , import logos as PLT files
◆Marks a wide range of materials from soft plastics to hardened steel- up to Rc60
Parameters
Marking speed | 2-3 digital/s (5*7mm) | Inputting air pressure | 0.3-0.6MPA |
Marking deepth | 0.1-1mm | Power consumption | ≤350W |
Marking area | 110*80mm 200*150mm(option) | Voltage | AC220V/50Hz 110V/50~60HZ |
Marking accuracy | 0.02mm | WorkingTemperature | 0℃-40℃ |
Marking software | XG3000 | Packing information | 120kg/0.8CUB |
