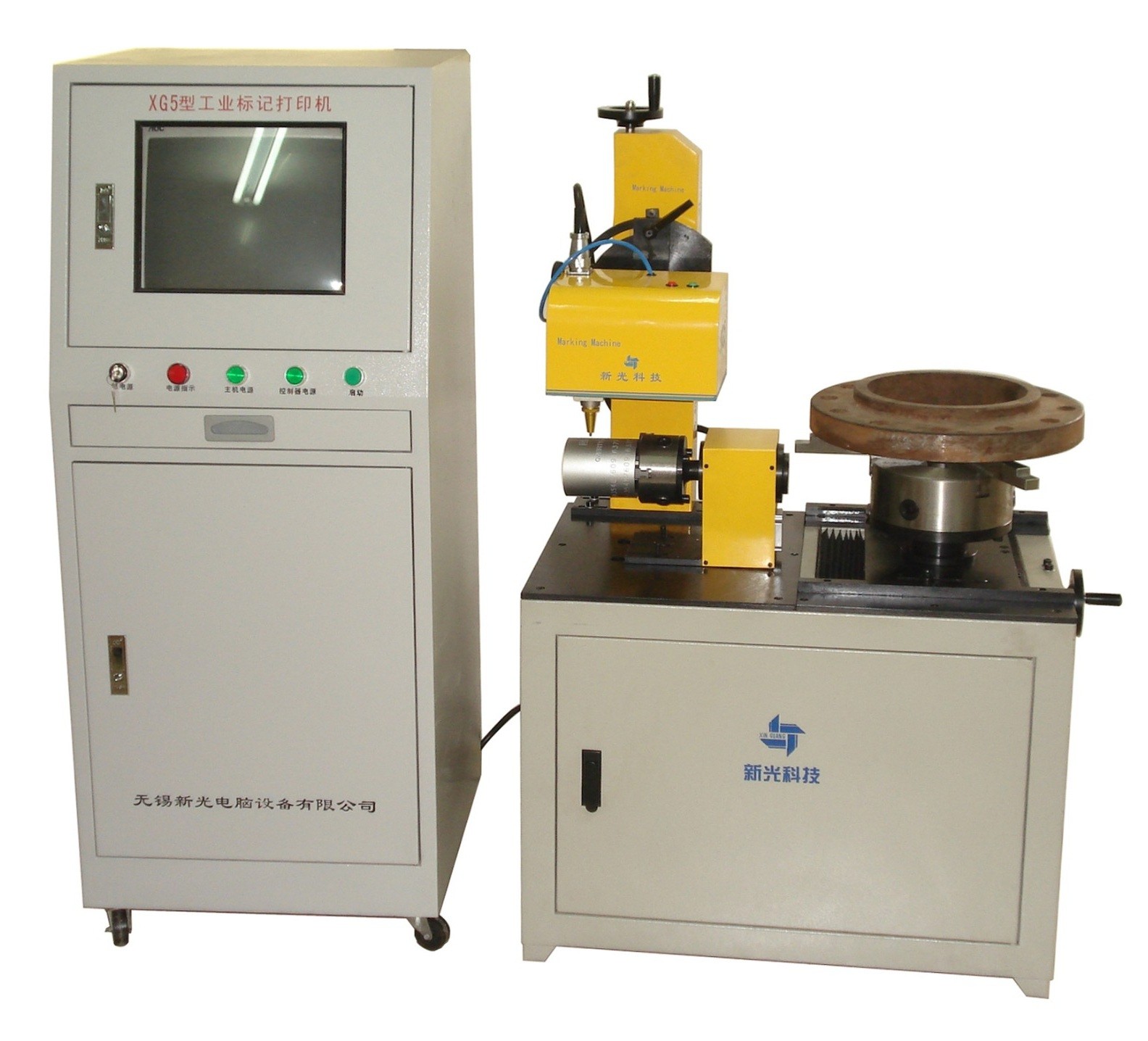

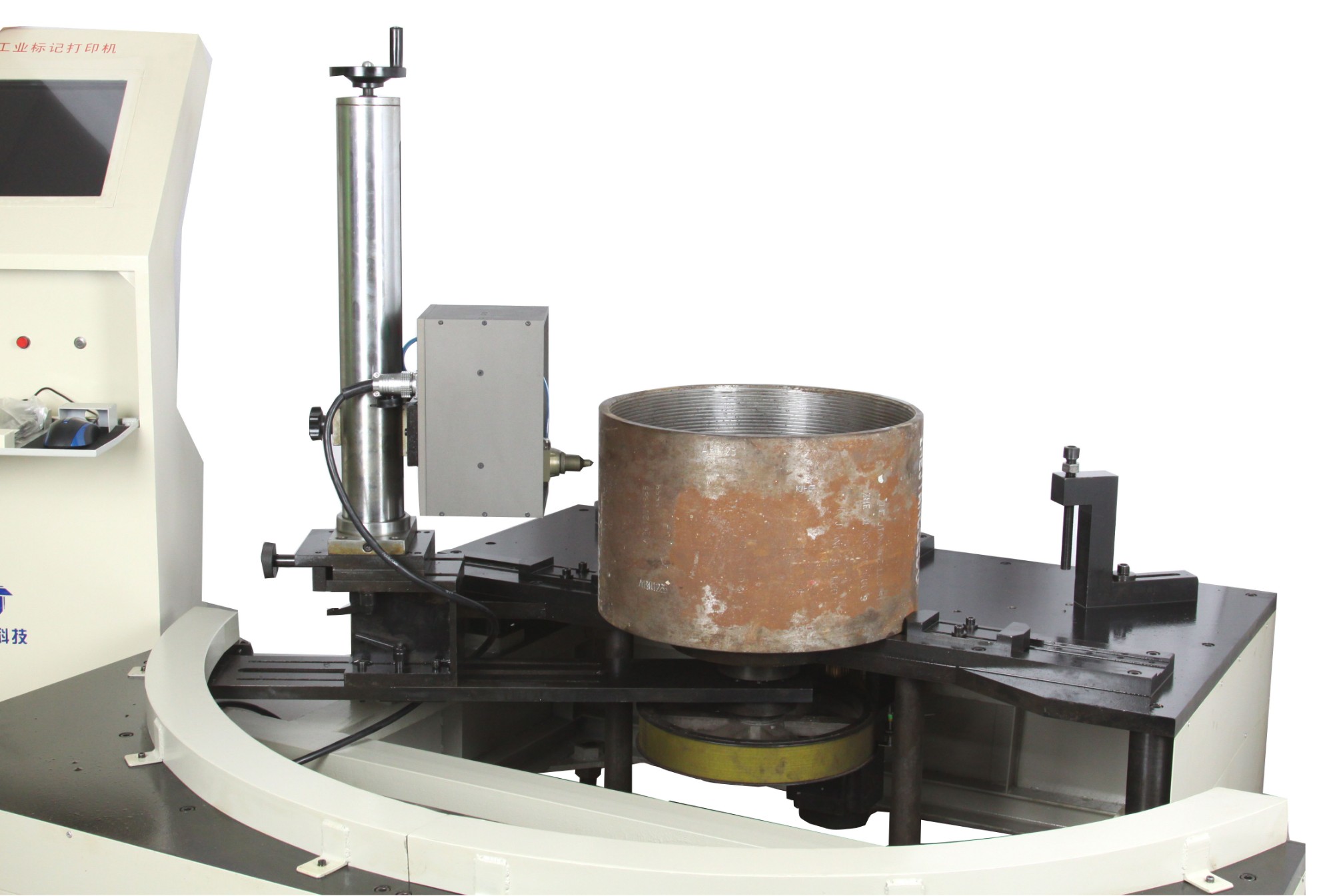

XG5-CF Dot peen marker is a patent model which is mostly for big and heavy metal workpiece circumference marking.

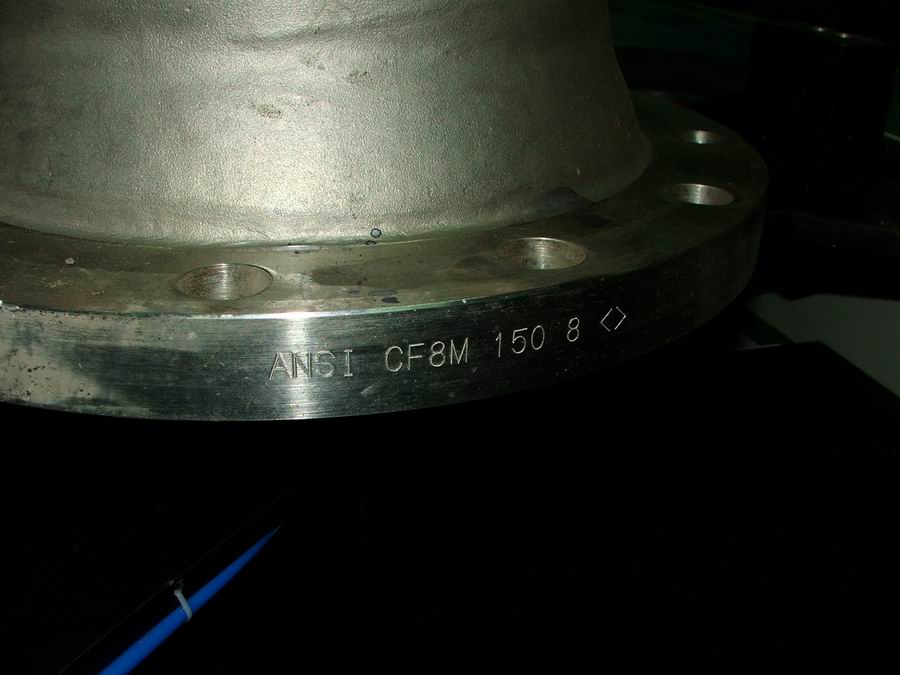

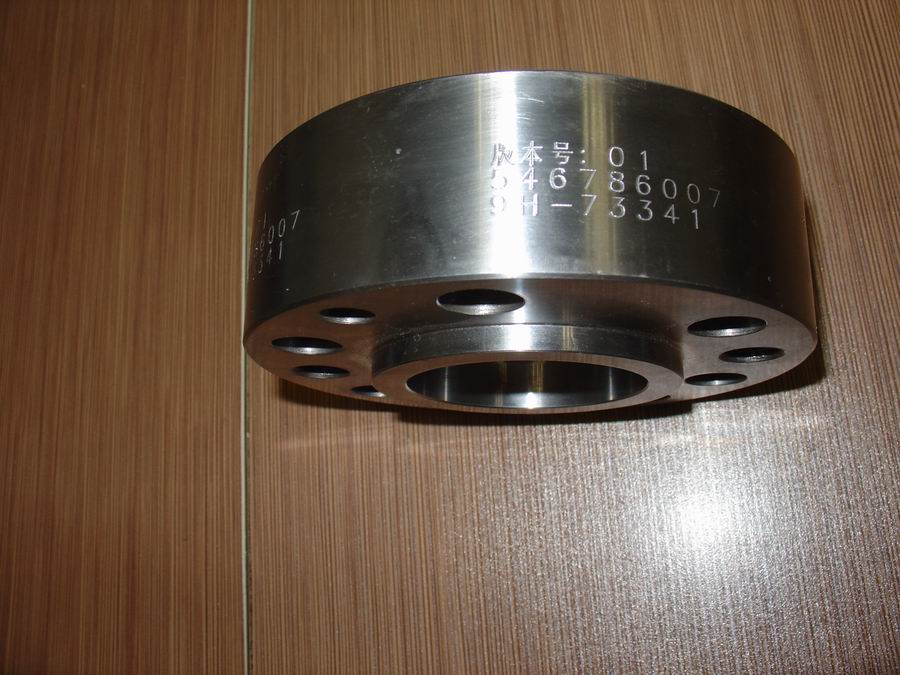

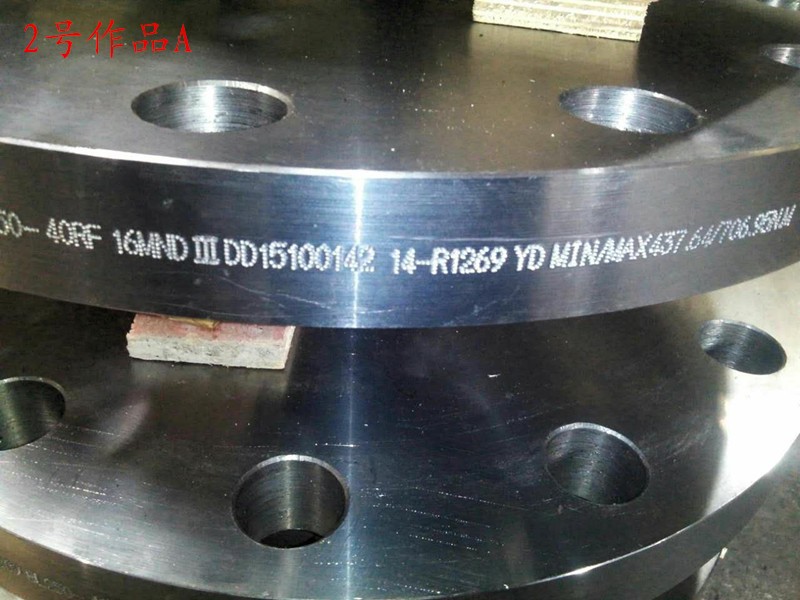

XG5-CF Dot peen marker is a patent model which is mostly for big and heavy metal workpiece circumference marking. For example: stainless stell flange ,carbon steel flange, alloy steel flange ,forged ring, pipe , pipe fitting ..... The design of block-out controlling cabinet benefits for damp-proof ,dust-proof, shake-proof, meanwhile , the dust-proof marking head with aluminum alloy which could protect dust or metal mote sparking into marking head and re-long using life . it could be used in the wicked working condition.
Software
◆ more than 100 types fonts could be choosed
◆ Text or logo size changed as will , mini 1*1mm
◆ Marking speed changed as will
◆ Support Straight line and dot marking
◆Mark straight line text, arc text , circles, boxes , ellippses ,lines and arcs , import logos as PLT files
◆Marks a wide range of materials from soft plastics to hardened steel- up to Rc60
Parameters
Marking speed | 3-5digital/s(5*7mm) | Inputting air pressure | 0.3-0.6MPA |
Marking deepth | 0.1-1mm | Power consumption | ≤350W |
Marking area | 110*80mm | Voltage | AC220V/50Hz 110V/50~60HZ |
Marking accuracy | 0.02mm | WorkingTemperature | 0℃-40℃ |
Marking software | XP/ XG3000 |

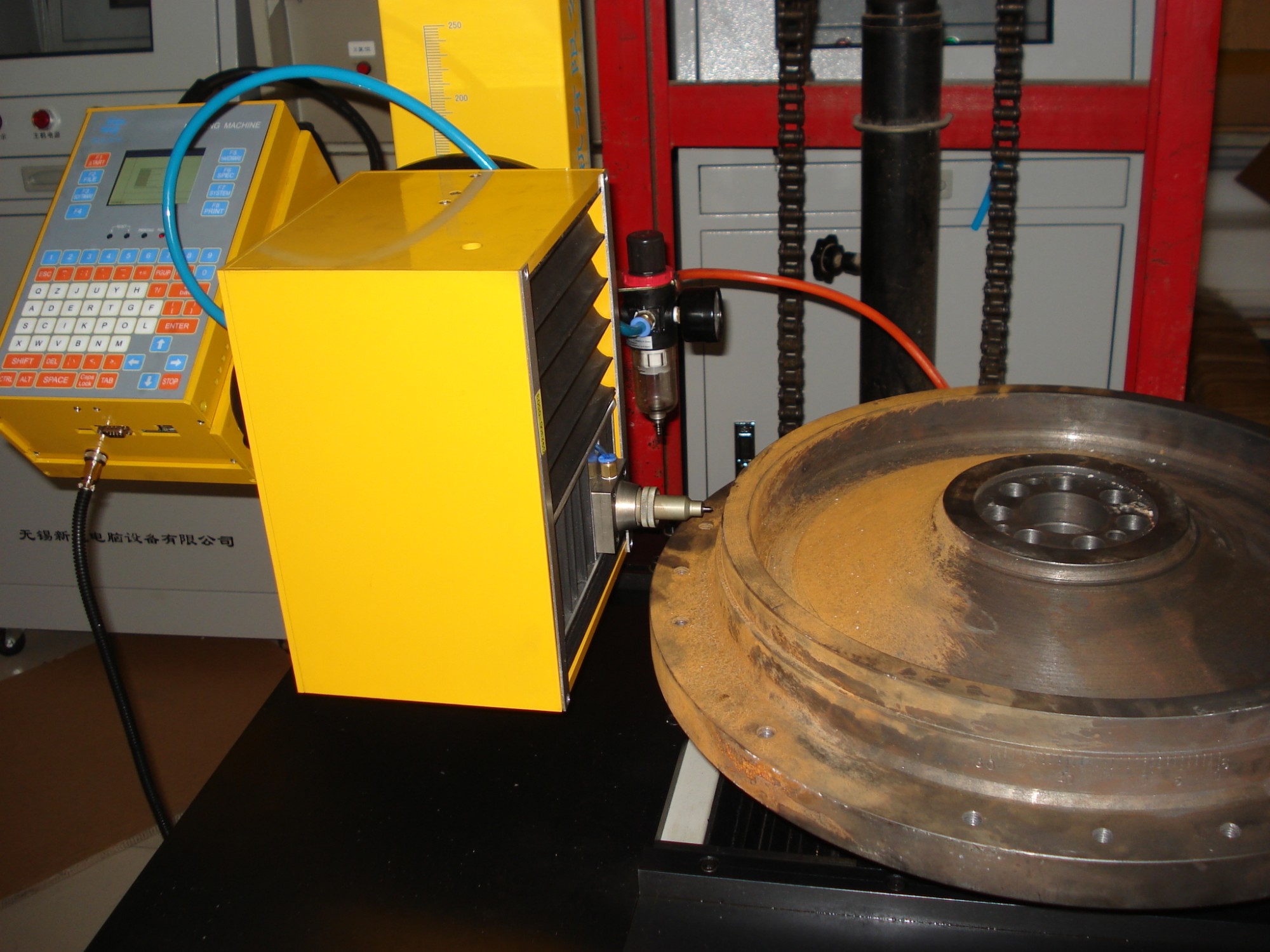

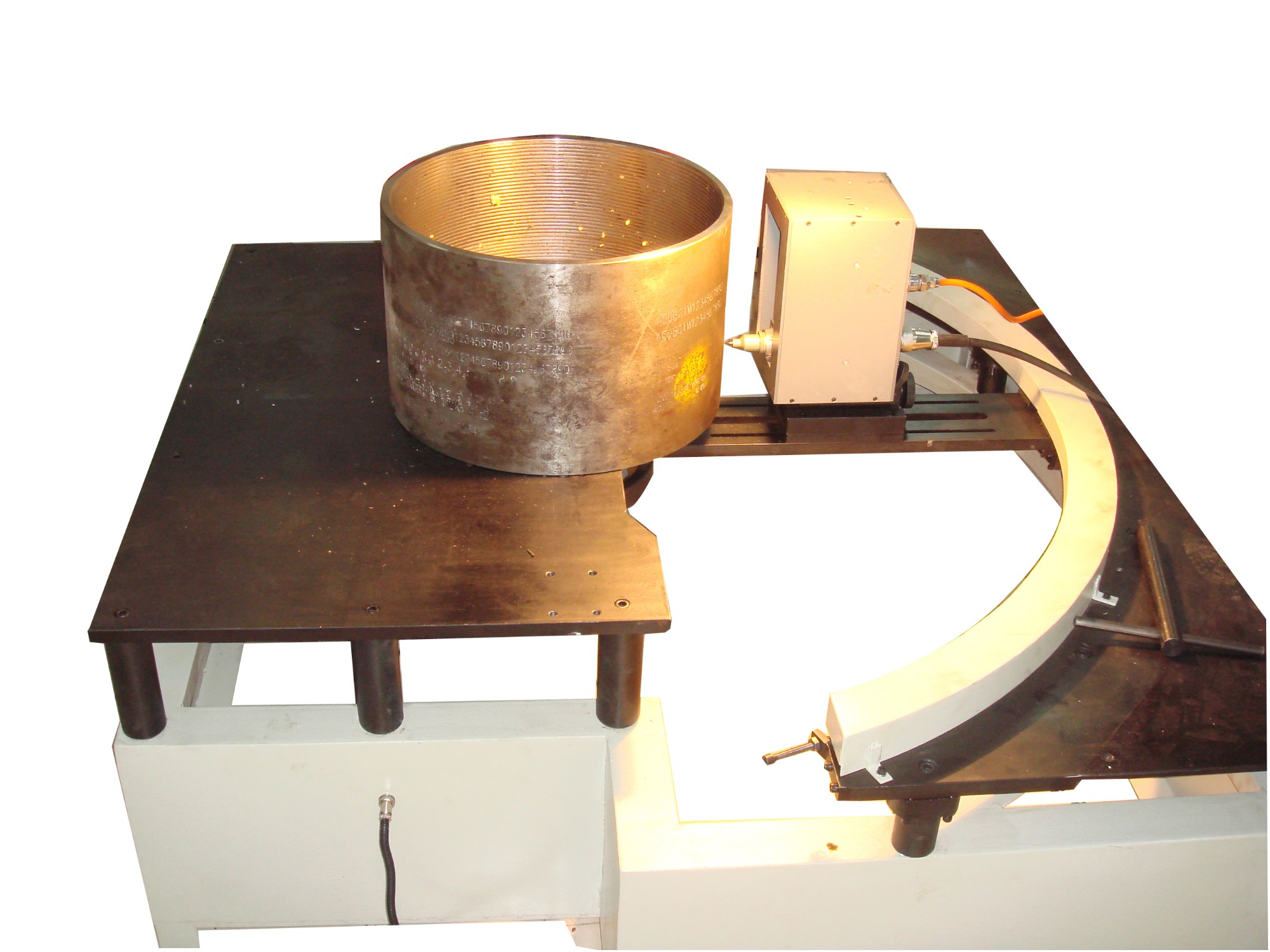

This model suitable for the products circumference marking
Workpiece diameter (inner ) | 150mm-450mm |
Workpiece weight | 5kg- 100kg |
Workpiece length | 10mm-500mm |
Marking machine list
MAIN PART | DETAIL | |
MARKER
| MOTOR | SITONG |
load linear bearing | HIWIN M20 | |
solenoid valve | SMC | |
Oil filter | SMC | |
Stylus pin | 4set | |
Rotary fixture | OD200MM | |
Rotary fixture chuck | Customization | |
CONTROLLER | CPU | Celeron |
Memory | 2G | |
HD Memory | 500G | |
Display | LCD 17” | |
Driver | SENGCHUANG | |
Pc Board | USB | |
Power | 800W | |
