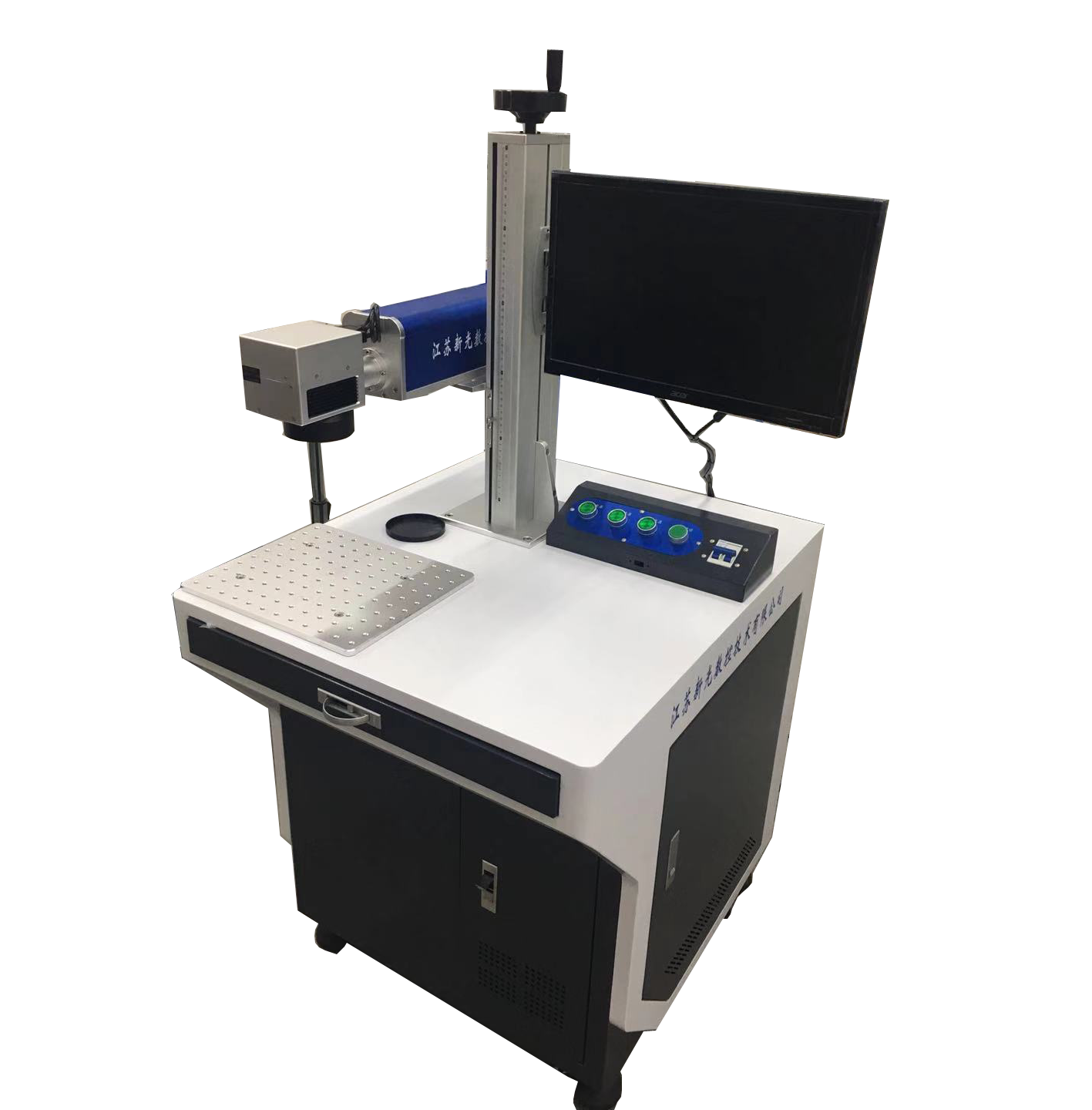

Fiber laser marker
The XINGUANG F-Series Laser Markers, available in three different power levels, the 20W Model
F20w , the 30W Model F30w. 60W Model F60w .The laser deliver a high power beam directly to the
marking surface via flexible fiber cable than mark character , digital , date codes , barcode , logo etc .
Product Highlights
Compact design for ease of intergration
100,000 hours using life
Zero maintenance
Laser Software
● Under operation system: windowns 7 , windowns 10
● Support Characters , digital, series NO, Date codes
●Various types of fonts are supported. Such as TrueType, JSF(Single line font ), DMF(Dot Matrix Font,
One-Dimensional bar code, Two-Dimensional bar code , and so on
● Common types of images are supported. (bmp, jpg, gif, tga, png, tif…)
●Common vector images are supported. (ai, dxf, dst, plt…)
● Flexible variable text : changes the text real time while in laser processing.Excel datasheet is supported
Specification
MACHINE MODEL | F20W | F30W | F50W |
LASER POWER | 20W | 30W | 60W |
LASER WAVELENGTH | 1064nm | 1064nm | 1064nm |
FIBER LENGTH | 2.5m | 2.5m | 2.5m |
LASER UNIT USING LIFE | 100,000 hours | 100,000hours | 100,000 hours |
MARKING SPEED | <= 7000mm/s Character marking speed and production line speed depend on material , character size and desired marking quality | ||
MARKING DEEPTH | 0.01-0.2MM | 0.01-0.2MM | 0.01-0.2MM |
MIN. LINE WIDTH | 0.01MM | 0.01MM | 0.01MM |
MIN. CHARACTER HEIGHT | 0.2MM | 0.2MM | 0.2MM |
MARKING FILED | (110*110mm (focal length f=160mm)
| (focal length f=160mm) Optional 175*175mm (f= 254mm) | 110*110mm (focal length f=160mm) Optional 175*175mm (f= 254mm) 300*300mm (f=380mm) |
POWER SUPPLY | 220V /110V | 220V /110V | 220V /110V |
POWER CONSUMPTION | 600 W/ hours | 600W/ hours | 800W/ HOUR |
COOLING | AIR | AIR | AIR |
POSITIONING | Visible red power | Visible red power | Visible red power |
OPERTAION TEMPERATURE | 25℃―28℃ | 25℃―28℃ | 25℃―28℃ |
HUMIDITY | 5% to 75% (no condensation) | 5% to 75% (no condensation) | 5% to 75% (no condensation) |
