XG3-A economic pin marker

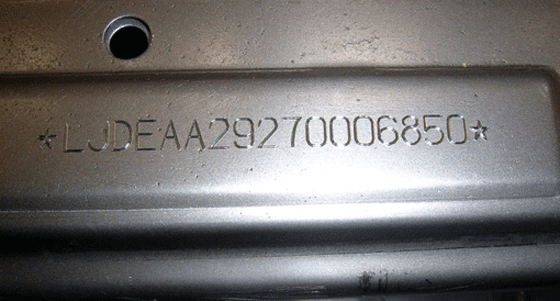

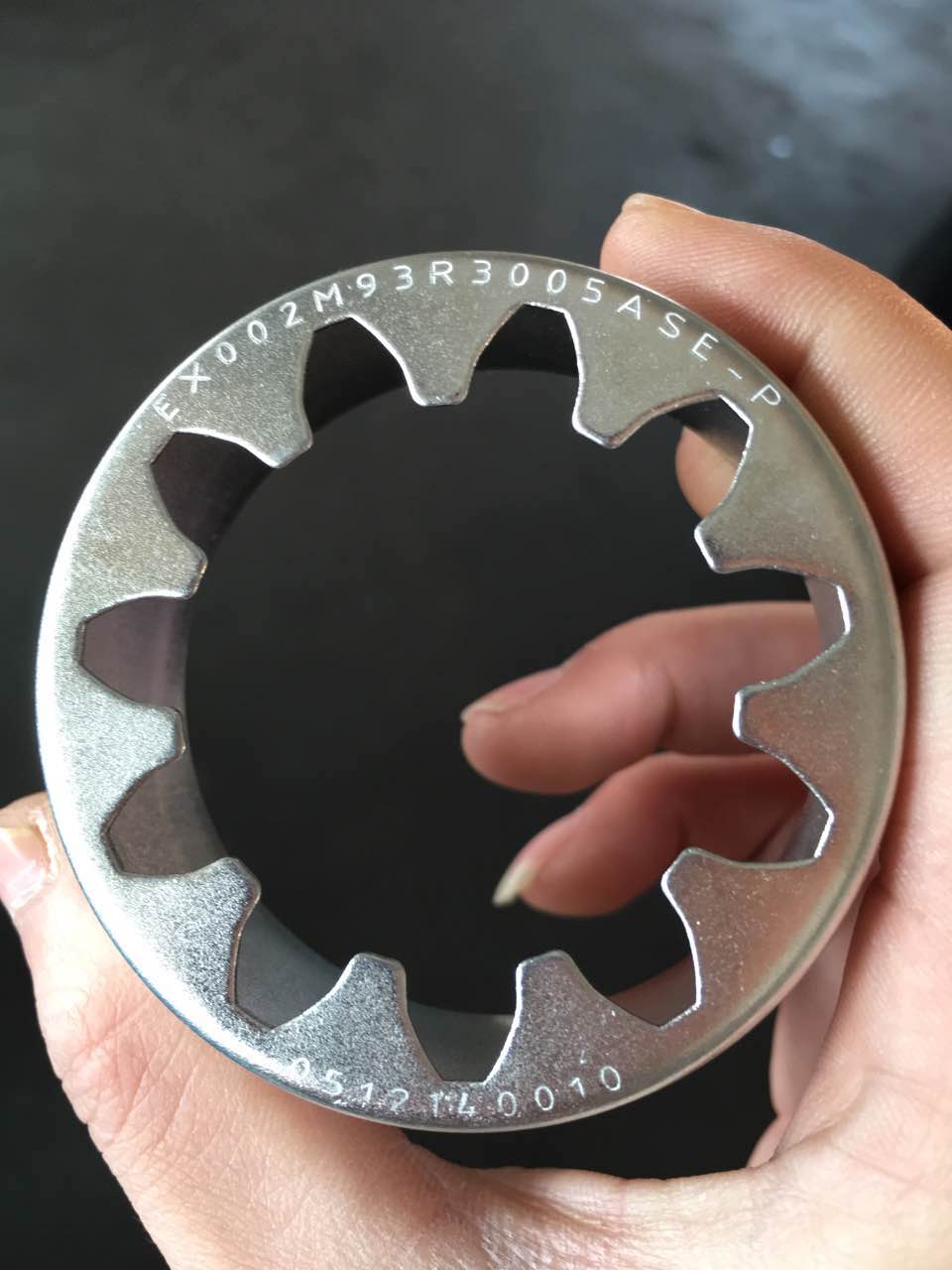

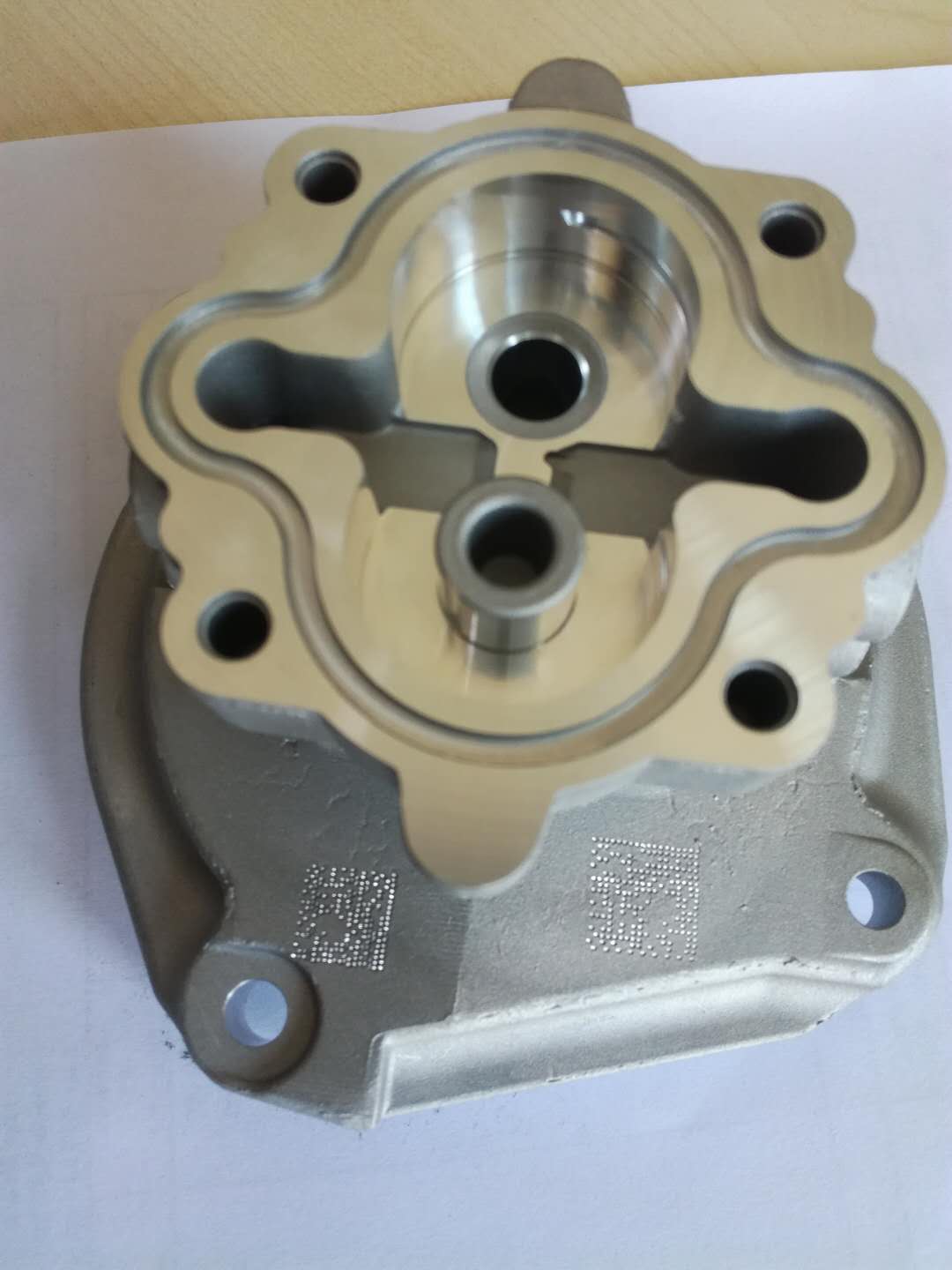

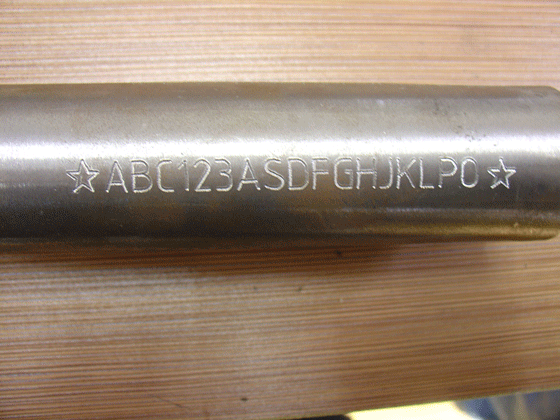

The DOT PEEN MARKER also known as Dot Marking, micropercussion and indent marking , that is carbide stylus pin dotting on the surface with high frequency than made a mark , it could mark alphanumeric (date , VIN codes , series NO ), logo or 2D barcode information on metal and plastic material --for part identification requirements. such as aerospace, automobile, mechanical, cast, electromechanical,

關閉
產品咨詢
客服熱線:0510-88207091

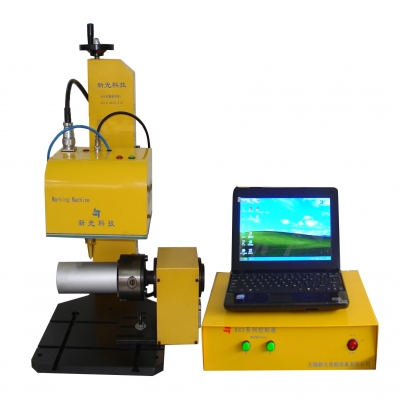

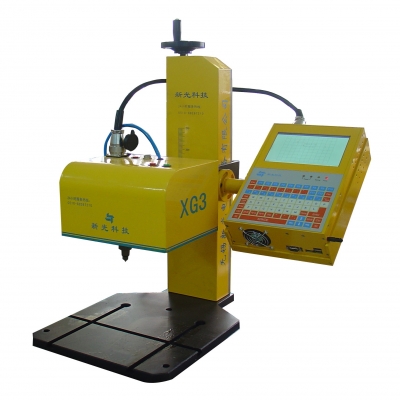

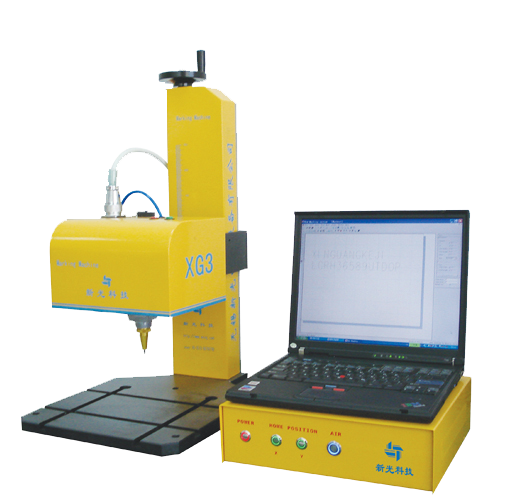

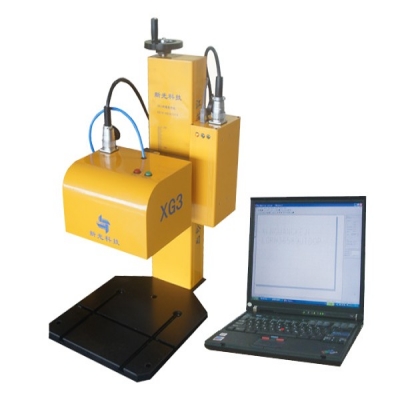

XG3-A dot peen marker

SOFTWARE

USB Controller,pc with XP/W7 system PC required

Flat marking , 110*80mm marking area

more than 100 types fonts could be choosed

Text or logo size changed as will , mini 1*1mm

Marking speed changed as will

Support Straight line and dot marking

Mark straight line text, arc text , circles, boxes , ellippses ,lines and arcs , import logos as PLT files

Marks a wide range of materials from soft plastics to hardened steel- up to Rc60


SPECIFICATION

Marking speed

2-3 digital/s (5*7mm)

Inputting air pressure

0.3-0.6MPA

Marking deepth

0.1-1mm

Power consumption

≤350W

Marking area

110*80mm 200*150mm(option)

Voltage

AC220V/50Hz  110V/50~60HZ

Marking accuracy

0.02mm

WorkingTemperature

0-40

Marking software

XG3000

Packing information

60kg/0.17 CUB
